QSH汽水混合器 |
 產品型號:
|
型號 |
QSH-4 |
QSH-6 |
QSH-8 |
QSH-10 |
QSH-12 |
QSH-16 |
QSH-20 |
QSH-24 |
QSH-32 |
QSH-40 |
QSH-48 |
QSH-64 |
|

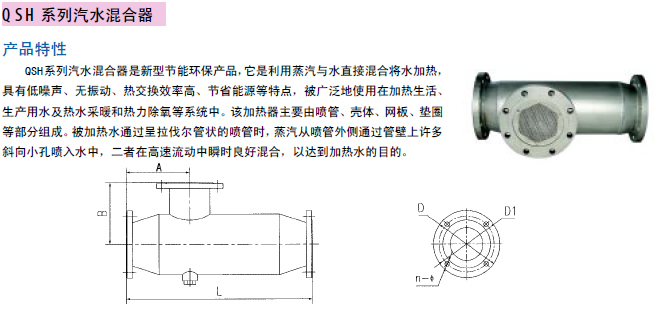

安裝尺寸 |
A |
105 |
130 |
220 |
450 |
|
B |
105 |
130 |
170 |
300 |
|
L |
240 |
360 |
660 |
1200 |
|
水側法蘭規格 |
DN |
40 |
65 |
125 |
250 |
|
汽側法蘭規格 |
DN |
40 |
65 |
125 |
250 | 開式系統蒸汽消耗量表（飽和蒸汽壓力為0.4MPa）
|
QSH |
4 |
6 |
8 |
10 |
12 |
16 |
20 |
24 |
32 |
40 |
48 |
|
額定進水流量 |
1.2 |
2.5 |
4.5 |
7.0 |
10 |
16 |
25 |
35 |
60 |
105 |
165 |
|
加熱溫差℃ |
20 |
0.039 |
0.081 |
0.146 |
0.228 |
0.325 |
0.520 |
0.813 |
1.138 |
1.951 |
3.145 |
5.366 |
|
40 |
0.081 |
0.188 |
0.303 |
0.470 |
0.672 |
1.076 |
1.681 |
2.353 |
4.034 |
7.057 |
11.092 |
|
60 |
0.125 |
0.261 |
0.459 |
0.730 |
1.043 |
1.669 |
2.609 |
3.652 |
6.261 |
10.952 |
17.217 |
|
80 |
0.173 |
0.360 |
0.649 |
1.009 |
1.441 |
2.306 |
3.603 |
5.045 |
8.649 |
15.135 |
23.784 | 循環系統蒸汽消耗量表（飽和蒸汽壓力為0.4MPa）
|
QSH |
4 |
6 |
8 |
10 |
12 |
16 |
20 |
24 |
32 |
40 |
48 |
|
額定進水流量 |
1.2 |
2.5 |
4.5 |
7.0 |
10 |
16 |
25 |
35 |
60 |
105 |
165 |
|
加熱溫差℃ |
70-95 |
0.054 |
0.112 |
0.201 |
0.312 |
0.446 |
0.714 |
1.116 |
1.562 |
2.678 |
4.687 |
7.366 |
|
70-110 |
0.088 |
0.183 |
0.330 |
0.514 |
0.734 |
1.174 |
1.830 |
2.569 |
4.404 |
7.706 |
12.110 |
|
70-130 |
0.137 |
0.286 |
0.454 |
0.800 |
1.143 |
1.829 |
2.857 |
4.000 |
6.857 |
12.000 |
18.857 |
|
|
